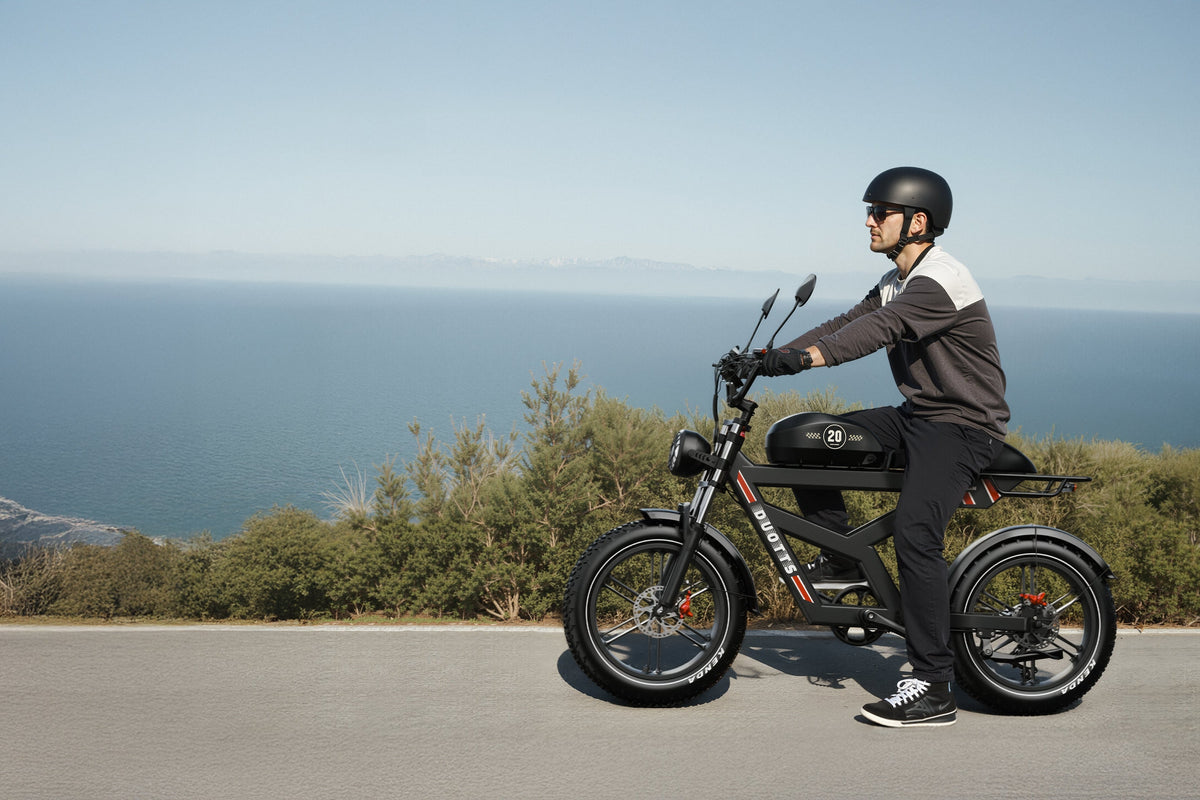

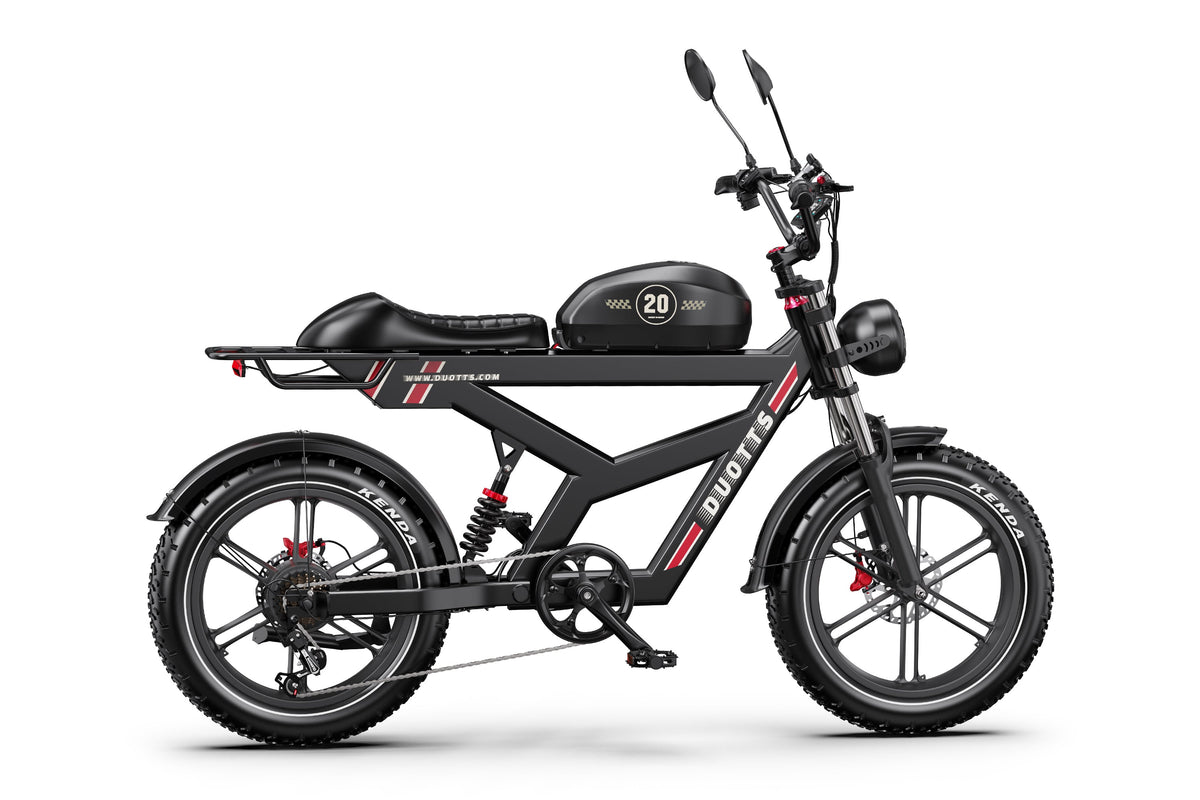

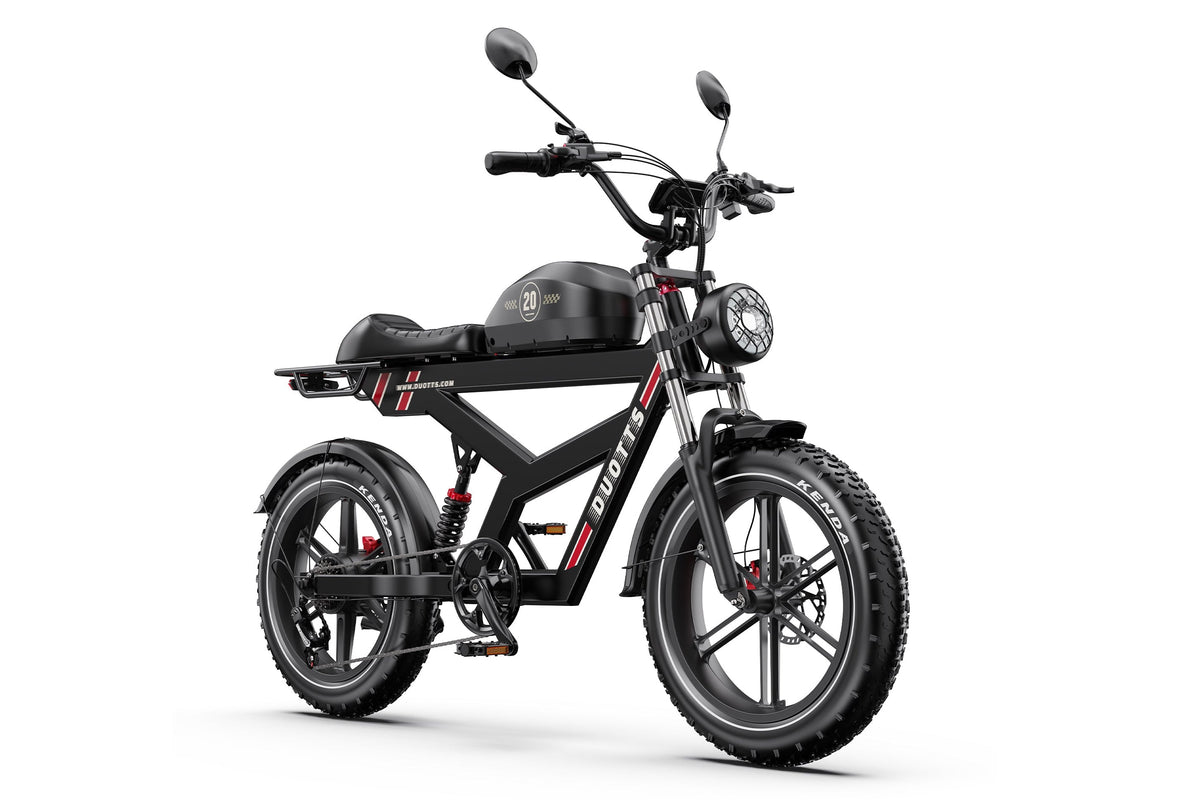

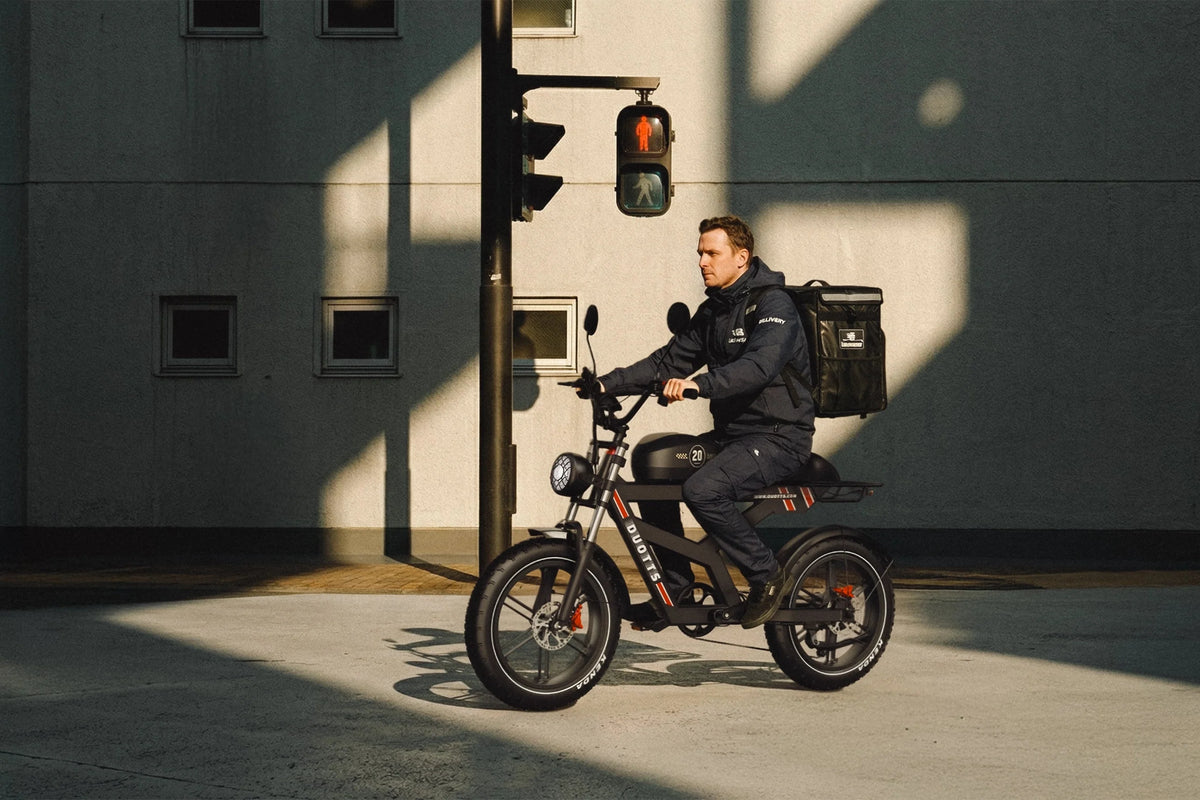

DUOTTS F20 Electric Bike, official manufacturer photograph
Product image
DUOTTS F20 Electric Bike, official manufacturer photograph DUOTTS F20 Electric Bike, official manufacturer photograph DUOTTS F20 Electric Bike, official manufacturer photograph DUOTTS F20 Electric Bike, official manufacturer photograph

DUOTTS

DUOTTS F20 Electric Bike

For riders prioritising a large battery and suspension over carrying convenience.

  • 1,404 Wh battery
  • Full suspension
  • Hydraulic brakes

Reference price. Final price and availability will be confirmed for your selected version.

€1.049,00 EUR

Taxes included. Shipping calculated at checkout.

Sold out

Delivery estimate confirmed at checkout.

This configuration cannot currently be ordered. Contact ortlux for assistance.

Ask about this model

02 /

Know what fits your ride.

For riders prioritising a large battery and suspension over carrying convenience.

A substantial small-wheel platform

The 52 V / 27 Ah battery provides a calculated 1,404 Wh. Full suspension and hydraulic brakes support the model’s substantial 20-inch-wheel format.

Before you choose

Small wheels do not make this a lightweight or folding commuter. Measure access to storage and compare the F26Lite if a simpler configuration is more suitable.

Maximum load
150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.
Manufacturer net weight
38.03 kgManufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.
Manufacturer range
130–140 kmManufacturer’s stated range. Actual distance varies with rider weight, terrain, temperature and assistance level.
Battery capacity
1404 Wh
Design top speed
25 km/h
Ingress protection
IPX4
Rider height
170–200 cm
03 /

Support beyond delivery.

Care and support

Keep the model label, serial number, battery label and charger details. For a fault, record the display message and take clear photos of the affected part. Match replacement brake pads, tyres and electrical components to the supplied version.

04 /

Delivery and setup.

Getting ready to ride

Inside the box
  • Charger
  • user manual
  • tool kit
  • half-twist throttle
  • pedals
  • air pump
  • phone bag
  • rearview mirror
05 /

The details, grouped.

Motor

Torque
70 Nm
Assistance sensor
Speed sensor
Design top speed
25 km/h

Battery

Battery configuration
52V 27Ah battery
Battery capacity
1404 Wh
Charging time
8–9 hours
Manufacturer range
130–140 km

Frame

Frame material
Aluminium alloy frame
Gearing
Shimano Tourney 1×7-speed derailleur system
Suspension
Dual-crown suspension fork with aluminium crown and steel stanchions, 80 mm travel, non-adjustable, non-lockout

Brakes

Brake type
ZOOM dual-piston hydraulic disc brakes, 180 mm rotors

Tyres

Tyre size
Kenda 20" x 4.0" tyre, 30 TPI

Dimensions & weight

Dimensions
1800*1050*760 mm
Manufacturer net weight
38.03 kg
Maximum load
150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.

Weight basis: Manufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.

Range context: Manufacturer pedal-assist range estimate; not an ortlux road test. Rider mass, assistance level, terrain, temperature and tyre pressure affect the distance.

Manufacturer source ↗ · Specification checked:

06 /

Why this brand is here.

DUOTTS spans conventional-wheel electric bicycles, large-battery configurations and fat-tyre models. In this selection, C29Lite and E29 offer different assistance systems; C29-K adds a second battery; F20, F26 and N26 use wider tyres and larger formats. Those differences matter more than a single headline power number.

DUOTTS gives riders a choice between conventional wheel sizes, large batteries and fat-tyre formats. Compare the EU configuration before choosing. We would not choose its heavier fat-tyre models for someone who carries a bike up stairs every day.

Explore the brand
08 /

Model questions

Who should shortlist this model?

For riders prioritising a large battery and suspension over carrying convenience. Small wheels do not make this a lightweight or folding commuter. Measure access to storage and compare the F26Lite if a simpler configuration is more suitable.

How should I read the range figure?

Manufacturer pedal-assist range estimate; not an ortlux road test. Rider mass, assistance level, terrain, temperature and tyre pressure affect the distance.

What should I confirm before ordering?

Confirm the selected version, rider fit, stock, delivered price and road-use requirements for your country. Manufacturer catalogue availability does not confirm ortlux stock.

09 /

Compare within the brand.

Model specifications from the same product fields

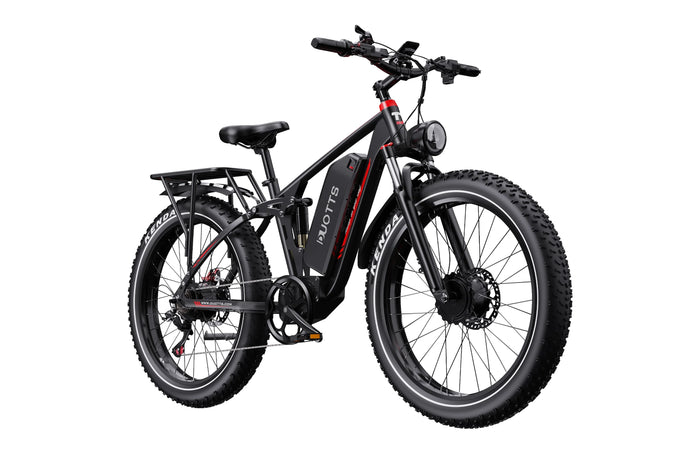

Configuration DUOTTS F20 Electric Bike DUOTTS F26 Electric Bike DUOTTS N26 Electric Bike DUOTTS S26 Electric Bike
Maximum load 150 kg 150 kg 150 kg 150 kg
Manufacturer net weight 38.03 kg 40.0 kg 39.16 kg 39.8 kg
Manufacturer range 130 km 100 km 100 km 100 km
Battery capacity 1404 Wh 960 Wh 960 Wh 960 Wh
Design top speed 25 km/h 25 km/h 25 km/h 25 km/h
Ingress protection IPX4 IPX4 IPX4 IPX4
Rider height (min) 170 cm 170 cm 170 cm 170 cm
Rider height (max) 200 cm 200 cm 200 cm 200 cm
