DUOTTS C29-K, right-facing side view
Product image

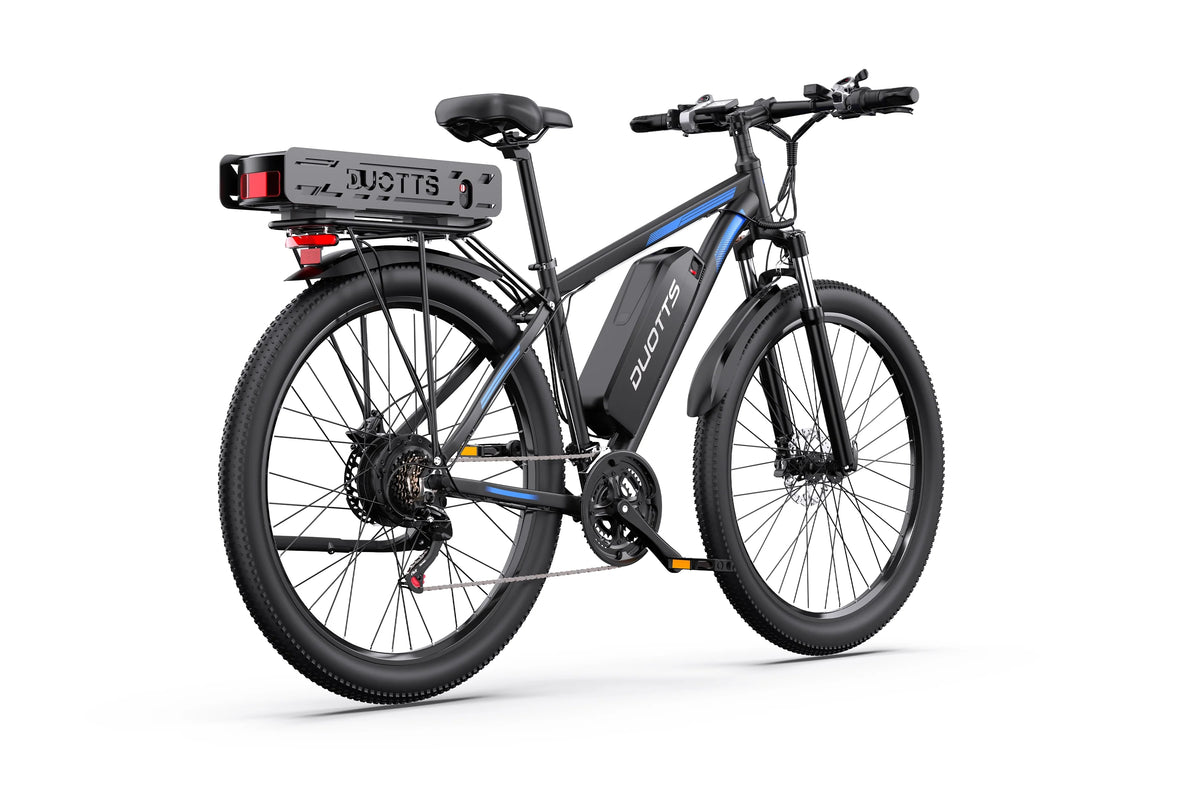

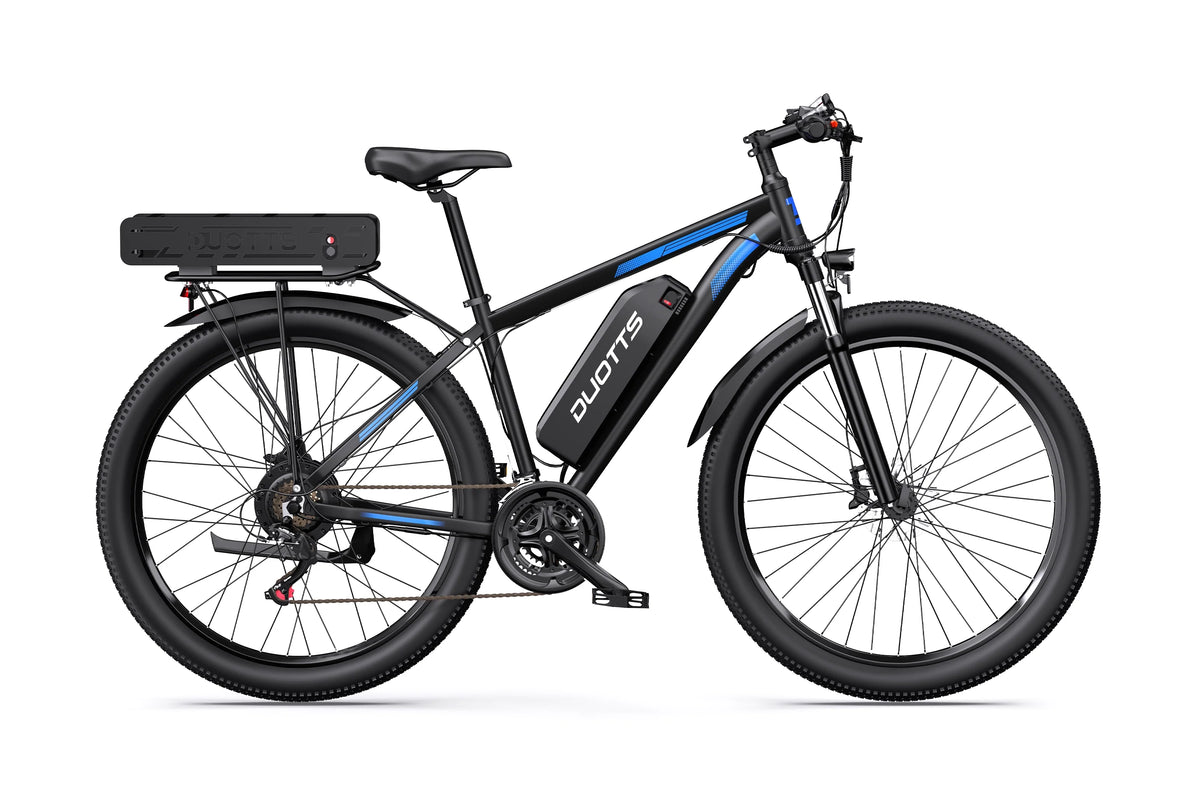

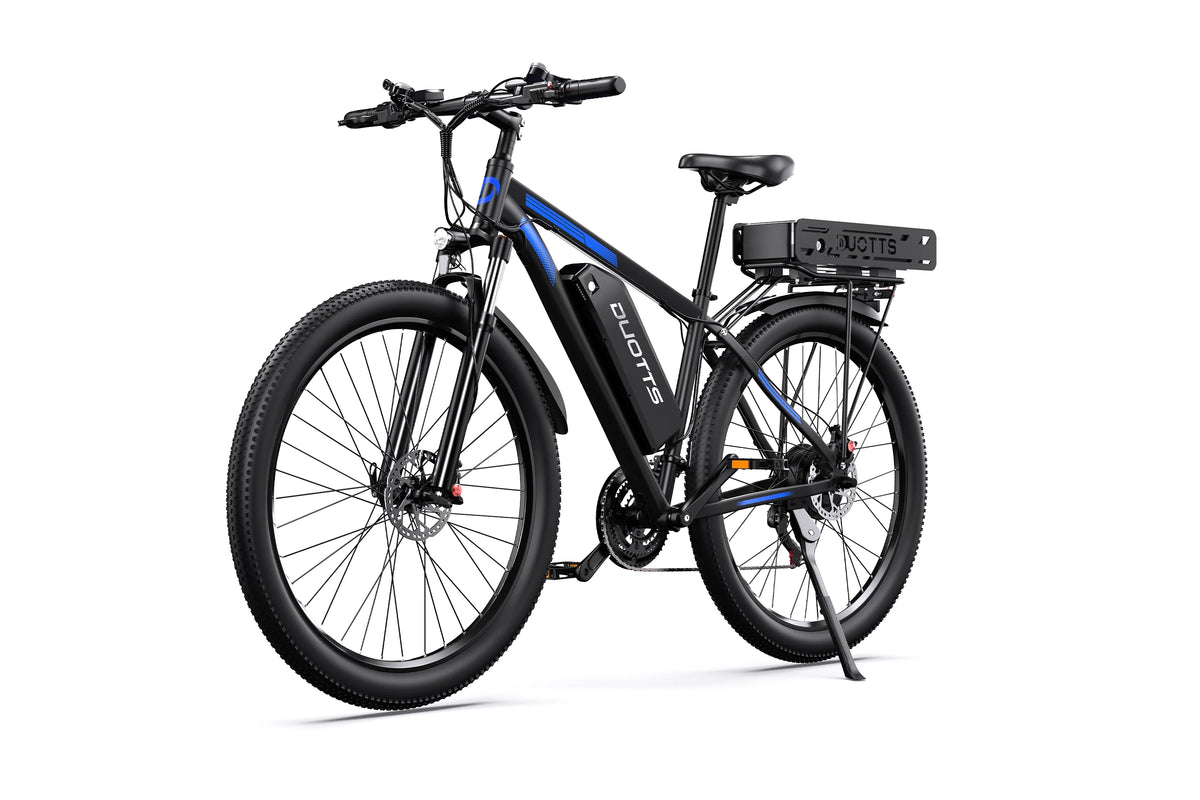

DUOTTS C29-K, right-facing side view DUOTTS C29-K, side view DUOTTS C29-K, front three-quarter view DUOTTS C29-K, rear three-quarter view DUOTTS C29-K, frame battery detail DUOTTS C29-K, rear battery and rack DUOTTS C29-K, handlebar display DUOTTS C29-K, rear disc brake

DUOTTS

DUOTTS C29-K Electric Bike

A 29-inch bicycle with two batteries, hydraulic disc brakes and a 21-speed drivetrain.

  • Dual 48 V batteries
  • 29 × 2.125-inch tyres
  • Hydraulic disc brakes
€1.249,00 EUR

Taxes included. Free shipping on all orders, with no minimum spend.

Available to order

Dispatched within 48 hours after order confirmation, excluding weekends and public holidays in the dispatch country.

Delivery in 3–7 business days after dispatch.

ortlux is responsible for problems during transport.

Shipping Policy

  • American express
  • Diners club
  • Discover
  • Jcb
  • Maestro
  • Master
  • Paypal
  • Unionpay
  • Visa
  • Apple Pay
  • Google Pay
  • Klarna
02 /

Know what fits your ride.

Two batteries for longer routes

The C29-K combines a 48 V 15 Ah frame battery with a 48 V 22.5 Ah rear battery. Their combined nominal energy is 1,800 Wh. The aluminium frame, 29 × 2.125-inch tyres and hydraulic disc brakes provide a conventional bicycle format with additional battery capacity.

  • Dual 48 V batteries
  • 29 × 2.125-inch tyres
  • Hydraulic disc brakes

Battery, range and storage

The supplier specifies approximately 150–170 km in pedal-assist mode. That is a manufacturer estimate, not an ortlux range test. Two batteries also mean more weight and two charging routines: allow 7–8 hours for the 15 Ah pack and 6–7 hours for the 22.5 Ah pack with the specified chargers.

Before you choose

Measure your storage space and check whether you need to lift the bicycle. Compare battery capacity and carrying weight together, rather than choosing from the longest range figure alone.

Additional model specifications

Specification Manufacturer information
Charger output 54.6V 2A+54.6V 3A
Display 2.4" HD display, Bluetooth-enabled for Duotts App
Front light 300 LUX headlight, manually operated
Mudguards Plastic mudguards
Rear rack Steel rear rack, max load 25 kg
Front suspension Single-crown aluminium suspension fork, 100 mm travel, non-adjustable, with lockout
Maximum load
150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.
Manufacturer net weight
32.5 kgManufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.
Manufacturer range
150–170 kmManufacturer’s stated range. Actual distance varies with rider weight, terrain, temperature and assistance level.
Battery capacity
1800 Wh
Design top speed
25 km/h
Ingress protection
IPX4
Rider height
170–200 cm
03 /

Support beyond delivery.

Returns and statutory rights

You have 14 calendar days after receiving the goods to notify us that you withdraw.

Estimated maximum withdrawal return costs: electric bicycles 150 EUR; electric scooters 80 EUR. ortlux pays for accessory returns.

Withdrawal refunds are due within 14 calendar days after we receive your notice, using the original payment method.

Your statutory guarantee lasts at least two calendar years.

ortlux pays all return and collection costs for quality and transport problems.

Returns & Right of Withdrawal Withdraw from contract here

Warranty and legal rights

Brand commercial warranties and the ortlux extended warranty do not replace or reduce your statutory rights.

We respond to warranty enquiries within 1–2 business days.

Repairs take 7–14 business days from receipt of the vehicle for repair.

ortlux pays the shipping costs for warranty repairs.

Warranty & Your Legal Rights

Care and support

Keep the model label, serial number, battery label and charger details. For a fault, record the display message and take clear photos of the affected part. Match replacement brake pads, tyres and electrical components to the supplied version.

One place for aftercare

We reply within 1 business day. Monday to Friday, 09:30–18:30 CET/CEST (Europe/Berlin).

For enquiries received during service hours, we count from receipt; for enquiries received outside service hours, counting starts on the next business day.

Frank replies to escalated, unresolved customer-service cases within 2 business days.

Our Service Promise

Contact customer service

04 /

Delivery and setup.

Getting ready to ride

Inside the box
  • Charger
  • user manual
  • 16-in-1 tool
  • half-twist throttle
  • pedals
  • quick-release axle
  • motor axle protectors
  • air pump
  • phone bag
Delivery and handover

Shipping information
05 /

The details, grouped.

Motor

Torque
65 Nm
Assistance sensor
Speed sensor
Design top speed
25 km/h

Battery

Battery configuration
48V 15+22.5Ah
Battery capacity
1800 Wh
Charging time
15 Ah battery: 7–8 hours; 22.5 Ah battery: 6–7 hours
Manufacturer range
150–170 km

Frame

Frame material
Aluminium alloy
Gearing
Shimano Tourney 3 × 7-speed
Suspension
Single-crown aluminium suspension fork, 100 mm travel, non-adjustable, with lockout

Brakes

Brake type
Hydraulic disc brakes

Tyres

Tyre size
29 × 2.125 in

Dimensions & weight

Dimensions
1860 × 1080 × 680 mm (supplier dimension order)
Manufacturer net weight
32.5 kg
Maximum load
150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.

Weight basis: Manufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.

Range context: Official body copy quotes 150–170 km with assistance, while the headline quotes 150–200 km. Both refer to the dual-battery configuration. Range is a manufacturer estimate and depends on conditions.

Manufacturer source ↗ · Specification checked:

06 /

Why this brand is here.

DUOTTS spans conventional-wheel electric bicycles, large-battery configurations and fat-tyre models. In this selection, C29Lite and E29 offer different assistance systems; C29-K adds a second battery; F20, F26 and N26 use wider tyres and larger formats. Those differences matter more than a single headline power number.

DUOTTS gives riders a choice between conventional wheel sizes, large batteries and fat-tyre formats. Compare the EU configuration before choosing. We would not choose its heavier fat-tyre models for someone who carries a bike up stairs every day.

Explore the brand
08 /

Model questions

What distinguishes this configuration?

The C29-K combines a 48 V 15 Ah frame battery with a 48 V 22.5 Ah rear battery. Their combined nominal energy is 1,800 Wh. The aluminium frame, 29 × 2.125-inch tyres and hydraulic disc brakes provide a conventional bicycle format with additional battery capacity.

What should I know about the battery and range?

The supplier specifies approximately 150–170 km in pedal-assist mode. That is a manufacturer estimate, not an ortlux range test. Two batteries also mean more weight and two charging routines: allow 7–8 hours for the 15 Ah pack and 6–7 hours for the 22.5 Ah pack with the specified chargers.

What should I check before choosing?

Measure your storage space and check whether you need to lift the bicycle. Compare battery capacity and carrying weight together, rather than choosing from the longest range figure alone.

09 /

Compare within the brand.

Model specifications from the same product fields
Configuration DUOTTS C29-K Electric Bike DUOTTS C29 Electric Bike DUOTTS C29Lite Electric Bike DUOTTS E29 Electric Bike
Maximum load 150 kg 150 kg 150 kg 150 kg
Manufacturer net weight 32.5 kg 27.8 kg 26.6 kg
Manufacturer range 150 km 80 km 65 km 80 km
Rated motor power 250 W
Battery capacity 1800 Wh 720 Wh 468 Wh 648 Wh
Design top speed 25 km/h 25 km/h 25 km/h 25 km/h
Ingress protection IPX4 IPX4 IPX4 IPX4
Rider height (min) 170 cm 170 cm 170 cm 170 cm
Rider height (max) 200 cm 200 cm 200 cm 200 cm
