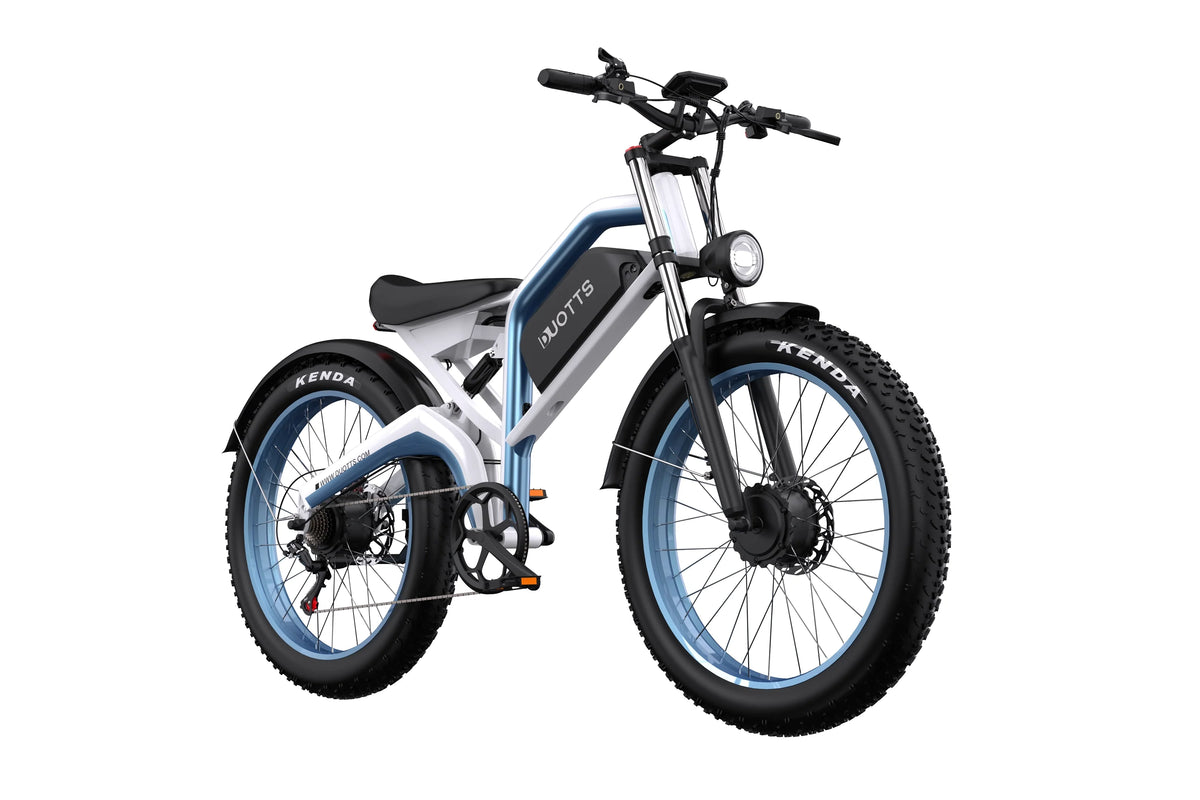

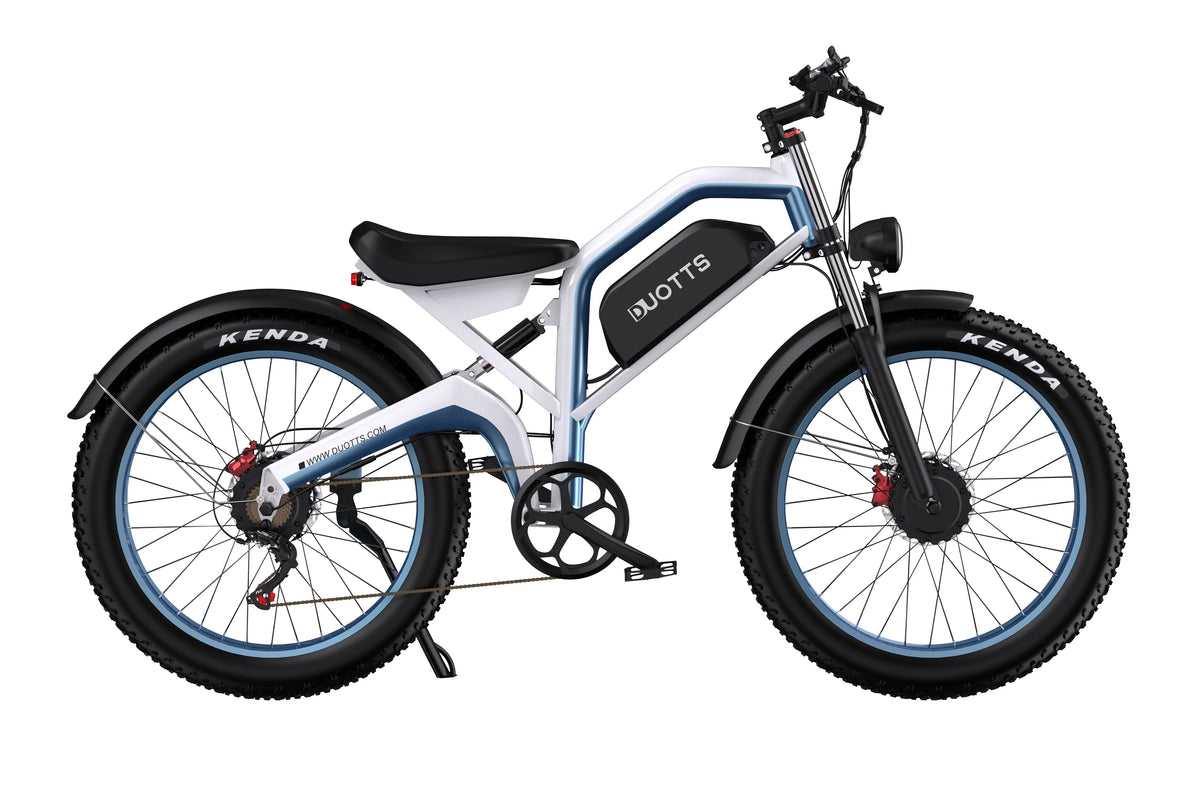

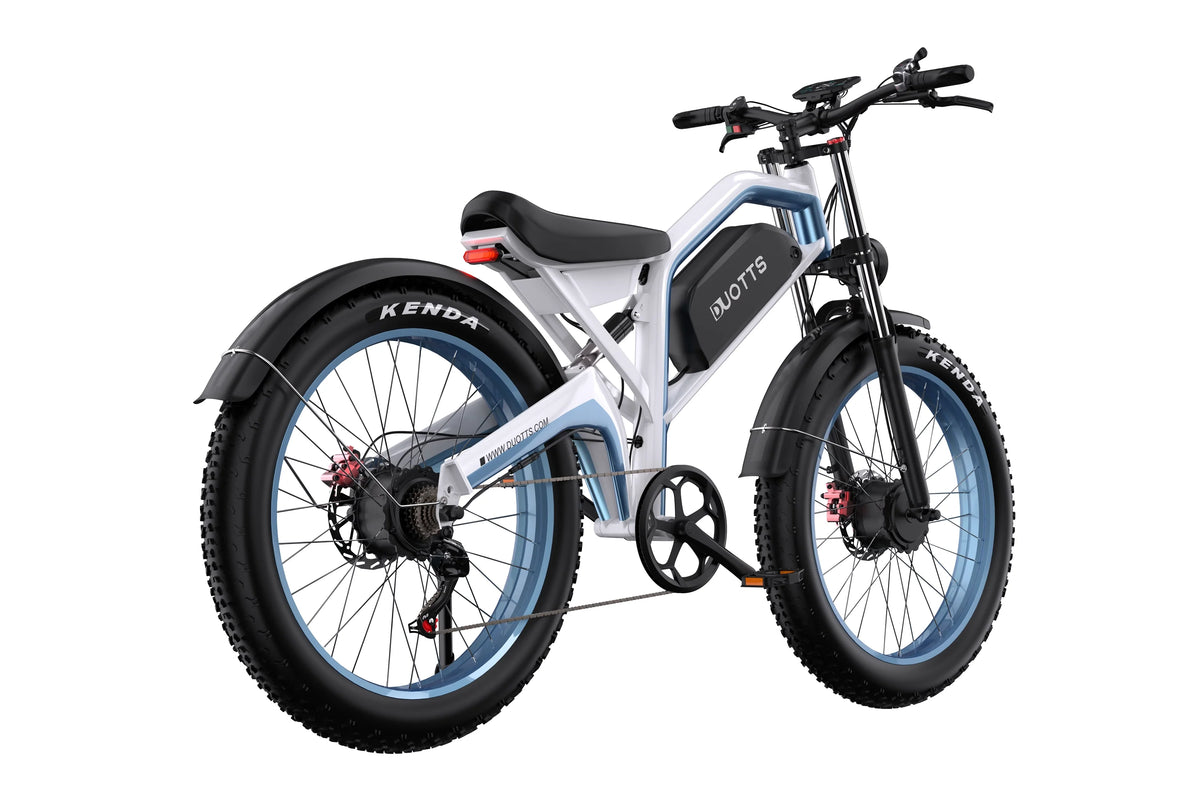

Name: DUOTTS N26 Electric Bike
Brand: DUOTTS
SKU: EU-DUOTTS-N26-BUW

02 /

Know what fits your ride.

A large format to plan around

The N26 uses 26 × 4.0-inch tyres and an aluminium frame. Its 48 V 20 Ah battery provides 960 Wh of nominal energy. The supplier configuration combines two motors, hydraulic disc brakes and Shimano seven-speed gearing.

26 × 4.0-inch tyres
48 V 20 Ah battery
Dual-motor configuration

Battery, range and storage

The supplier estimates 100–120 km with pedal assistance. Terrain, speed, load and assistance level affect the result. The vehicle dimensions are listed as 1950 × 730 × 1200 mm, so check parking and storage access before ordering.

Before you choose

This is a substantial bicycle, not a routine carrying option. Confirm the supplied motor configuration and local road-use status before choosing a route on public roads.

Additional model specifications

Specification	Manufacturer information
Charger output	54.6V 3A charger
Display	XF009 4.5" HD LCD display, Bluetooth-enabled for Duotts App, with Type-C charging port
Front light	70 LUX headlight, manually operated
Rear lighting	Integrated brake taillight
Mudguards	Plastic full coverage mudguards
Front suspension	Dual-crown suspension fork with aluminium crown and steel stanchions, 60 mm travel, adjustable, with lockout
Rear suspension	1200 lb spring shock absorber, non-adjustable, non-lockout

Maximum load: 150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.
Manufacturer net weight: 39.16 kgManufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.
Manufacturer range: 100–120 kmManufacturer’s stated range. Actual distance varies with rider weight, terrain, temperature and assistance level.

Battery capacity: 960 Wh
Design top speed: 25 km/h
Ingress protection: IPX4
Rider height: 170–200 cm

03 /

Support beyond delivery.

Returns and statutory rights

You have 14 calendar days after receiving the goods to notify us that you withdraw.

Estimated maximum withdrawal return costs: electric bicycles 150 EUR; electric scooters 80 EUR. ortlux pays for accessory returns.

Withdrawal refunds are due within 14 calendar days after we receive your notice, using the original payment method.

Your statutory guarantee lasts at least two calendar years.

ortlux pays all return and collection costs for quality and transport problems.

Returns & Right of Withdrawal Withdraw from contract here

Warranty and legal rights

Brand commercial warranties and the ortlux extended warranty do not replace or reduce your statutory rights.

We respond to warranty enquiries within 1–2 business days.

Repairs take 7–14 business days from receipt of the vehicle for repair.

ortlux pays the shipping costs for warranty repairs.

Warranty & Your Legal Rights

Care and support

Keep the model label, serial number, battery label and charger details. For a fault, record the display message and take clear photos of the affected part. Match replacement brake pads, tyres and electrical components to the supplied version.

One place for aftercare

We reply within 1 business day. Monday to Friday, 09:30–18:30 CET/CEST (Europe/Berlin).

For enquiries received during service hours, we count from receipt; for enquiries received outside service hours, counting starts on the next business day.

Frank replies to escalated, unresolved customer-service cases within 2 business days.

Our Service Promise

Contact customer service

04 /

Delivery and setup.

Getting ready to ride

Inside the box

Charger
user manual
tool kit
half-twist throttle
pedals
air pump
phone bag

Delivery and handover

Shipping information

05 /

The details, grouped.

Motor

Torque: 65 Nm per motor
Assistance sensor: Speed sensor
Design top speed: 25 km/h

Battery

Battery configuration: 48V 20Ah battery with Samsung cells
Battery capacity: 960 Wh
Charging time: 6–7 hours
Manufacturer range: 100–120 km

Frame

Frame material: Aluminium alloy
Gearing: Shimano 7-speed
Suspension: Dual-crown suspension fork with aluminium crown and steel stanchions, 60 mm travel, adjustable, with lockout

Brakes

Brake type: Hydraulic disc brakes

Tyres

Tyre size: 26 × 4.0 in

Dimensions & weight

Dimensions: 1950 × 730 × 1200 mm (supplier dimension order)
Manufacturer net weight: 39.16 kg
Maximum load: 150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.

Weight basis: Manufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.

Range context: Manufacturer pedal-assist range estimate; not an ortlux road test. Rider mass, assistance level, terrain, temperature and tyre pressure affect the distance.

Manufacturer source ↗ · Specification checked: 22 Sep 2026

06 /

Why this brand is here.

DUOTTS spans conventional-wheel electric bicycles, large-battery configurations and fat-tyre models. In this selection, C29Lite and E29 offer different assistance systems; C29-K adds a second battery; F20, F26 and N26 use wider tyres and larger formats. Those differences matter more than a single headline power number.

DUOTTS gives riders a choice between conventional wheel sizes, large batteries and fat-tyre formats. Compare the EU configuration before choosing. We would not choose its heavier fat-tyre models for someone who carries a bike up stairs every day.

Explore the brand

08 /

Model questions

What distinguishes this configuration?

The N26 uses 26 × 4.0-inch tyres and an aluminium frame. Its 48 V 20 Ah battery provides 960 Wh of nominal energy. The supplier configuration combines two motors, hydraulic disc brakes and Shimano seven-speed gearing.

What should I know about the battery and range?

The supplier estimates 100–120 km with pedal assistance. Terrain, speed, load and assistance level affect the result. The vehicle dimensions are listed as 1950 × 730 × 1200 mm, so check parking and storage access before ordering.

What should I check before choosing?

This is a substantial bicycle, not a routine carrying option. Confirm the supplied motor configuration and local road-use status before choosing a route on public roads.

09 /

Compare within the brand.

Model specifications from the same product fields
Configuration	DUOTTS N26 Electric Bike	DUOTTS F26 Electric Bike	DUOTTS S26 Electric Bike	DUOTTS E29 Electric Bike
Maximum load	150 kg	150 kg	150 kg	150 kg
Manufacturer net weight	39.16 kg	40.0 kg	39.8 kg	26.6 kg
Manufacturer range	100 km	100 km	100 km	80 km
Battery capacity	960 Wh	960 Wh	960 Wh	648 Wh
Design top speed	25 km/h	25 km/h	25 km/h	25 km/h
Ingress protection	IPX4	IPX4	IPX4	IPX4
Rider height (min)	170 cm	170 cm	170 cm	170 cm
Rider height (max)	200 cm	200 cm	200 cm	200 cm
