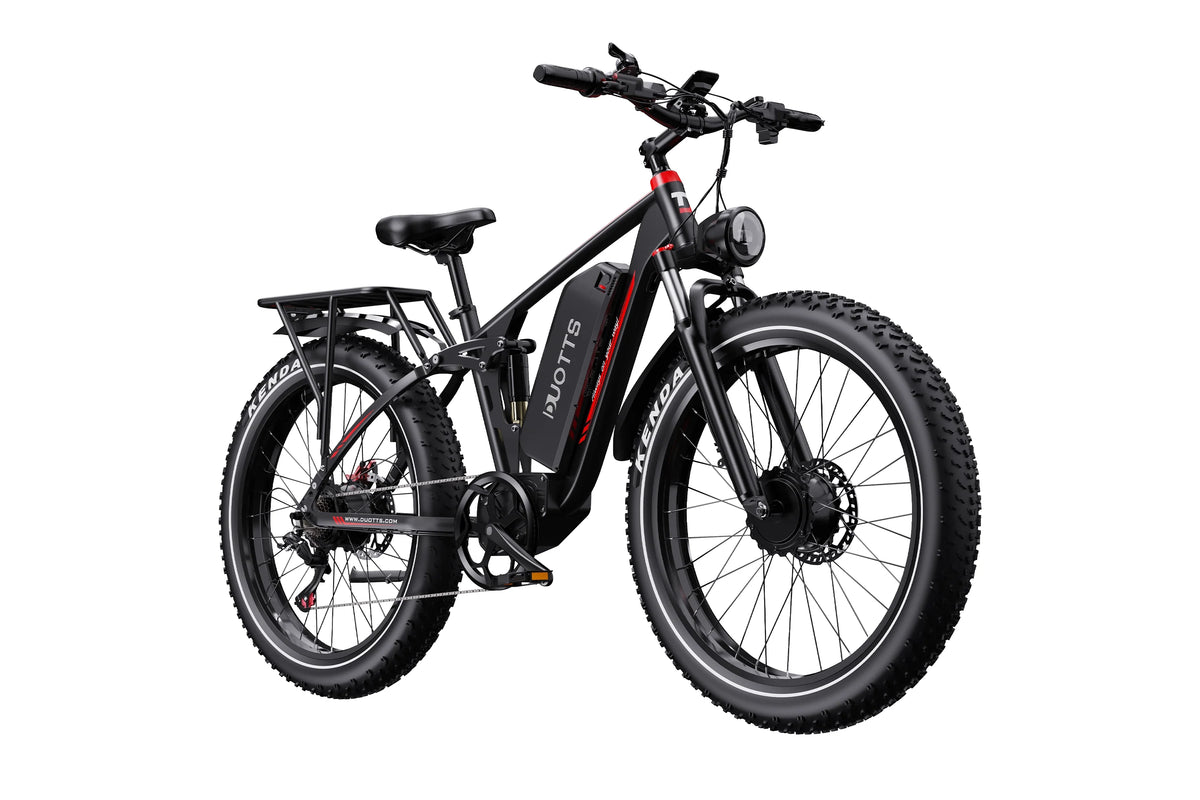

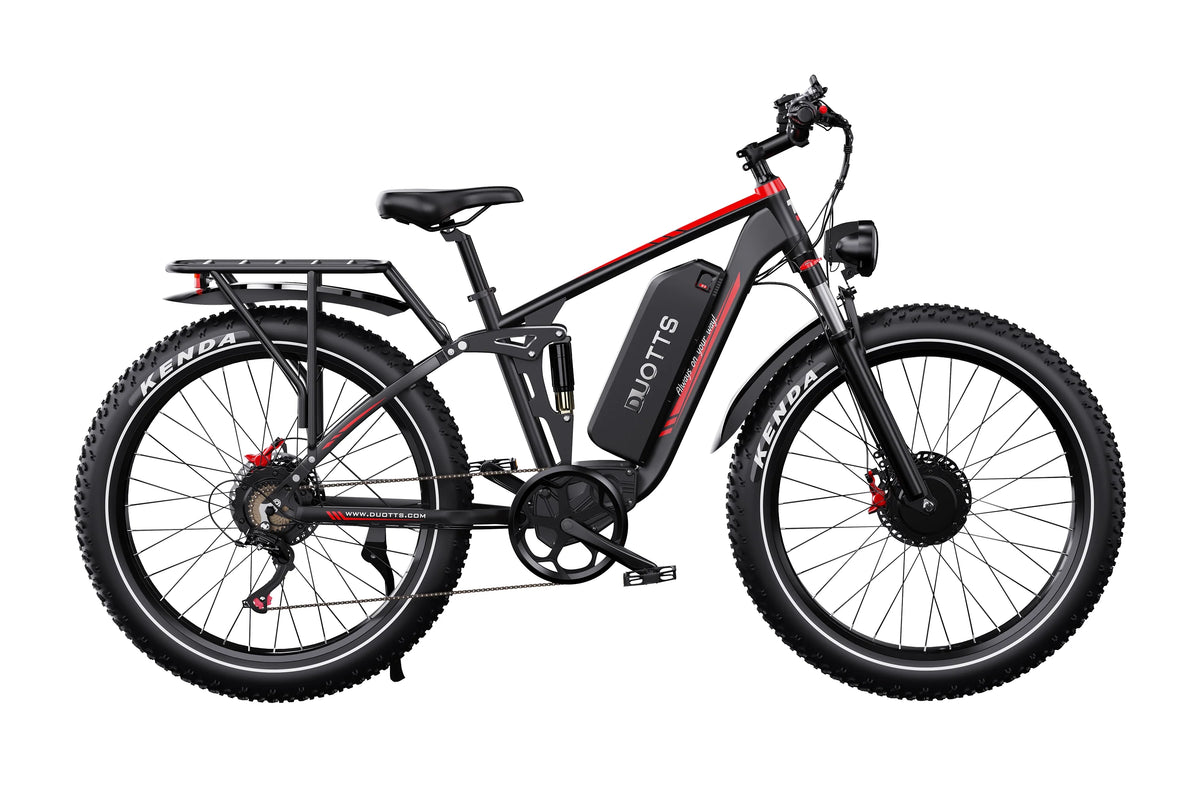

Name: DUOTTS S26 Electric Bike
Brand: DUOTTS
SKU: EU-DUOTTS-S26-BKR

02 /

Know what fits your ride.

Full-size wheels and battery capacity

The S26 pairs 26 × 4.0-inch pneumatic tyres with an aluminium frame. Its 48 V 20 Ah battery provides 960 Wh of nominal energy. The supplier lists a dual-motor configuration, Shimano seven-speed gearing and hydraulic disc brakes at both wheels.

48 V 20 Ah battery
26 × 4.0-inch tyres
Shimano seven-speed drivetrain

Battery, range and storage

The estimated pedal-assist range is 100–120 km. That estimate depends on rider load, terrain and assistance level. Charging is specified at 6–8 hours with the designated charger.

Before you choose

Check the approximately 39.8 kg manufacturer net weight against any lifting you need to do. Confirm the supplied edition and country-specific road requirements; do not treat a CE mark as public-road approval.

Additional model specifications

Specification	Manufacturer information
Display	3.2" HD LCD display, Bluetooth-enabled for Duotts App
Front light	70 LUX headlight, manually operated
Rear lighting	Integrated brake taillight
Mudguards	Plastic mudguards
Rear rack	Steel rear rack, max load 25 kg
Front suspension	Single-crown suspension fork with aluminium crown and steel stanchions, 80 mm travel, non-adjustable, with lockout
Rear suspension	1000 lb spring shock absorber, non-adjustable, non-lockout

Maximum load: 150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.
Manufacturer net weight: 39.8 kgManufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.
Manufacturer range: 100–120 kmManufacturer’s stated range. Actual distance varies with rider weight, terrain, temperature and assistance level.

Battery capacity: 960 Wh
Design top speed: 25 km/h
Ingress protection: IPX4
Rider height: 170–200 cm

03 /

Support beyond delivery.

Returns and statutory rights

You have 14 calendar days after receiving the goods to notify us that you withdraw.

Estimated maximum withdrawal return costs: electric bicycles 150 EUR; electric scooters 80 EUR. ortlux pays for accessory returns.

Withdrawal refunds are due within 14 calendar days after we receive your notice, using the original payment method.

Your statutory guarantee lasts at least two calendar years.

ortlux pays all return and collection costs for quality and transport problems.

Returns & Right of Withdrawal Withdraw from contract here

Warranty and legal rights

Brand commercial warranties and the ortlux extended warranty do not replace or reduce your statutory rights.

We respond to warranty enquiries within 1–2 business days.

Repairs take 7–14 business days from receipt of the vehicle for repair.

ortlux pays the shipping costs for warranty repairs.

Warranty & Your Legal Rights

Care and support

Keep the model label, serial number, battery label and charger details. For a fault, record the display message and take clear photos of the affected part. Match replacement brake pads, tyres and electrical components to the supplied version.

One place for aftercare

We reply within 1 business day. Monday to Friday, 09:30–18:30 CET/CEST (Europe/Berlin).

For enquiries received during service hours, we count from receipt; for enquiries received outside service hours, counting starts on the next business day.

Frank replies to escalated, unresolved customer-service cases within 2 business days.

Our Service Promise

Contact customer service

04 /

Delivery and setup.

Getting ready to ride

Inside the box

Charger
user manual
16-in-1 tool
half-twist throttle
pedals
quick-release skewers (front)
motor axle protectors
air pump
phone bag

Delivery and handover

Shipping information

05 /

The details, grouped.

Motor

Torque: 65 Nm
Assistance sensor: Speed sensor
Design top speed: 25 km/h

Battery

Battery configuration: 48V 20Ah battery with Samsung cells
Battery capacity: 960 Wh
Charging time: 6–8 hours
Manufacturer range: 100–120 km

Frame

Frame material: Aluminium alloy
Gearing: Shimano 7-speed
Suspension: Single-crown suspension fork with aluminium crown and steel stanchions, 80 mm travel, non-adjustable, with lockout

Brakes

Brake type: Front and rear hydraulic disc brakes

Tyres

Tyre size: 26 × 4.0 in

Dimensions & weight

Dimensions: 1930*1130*710 mm
Manufacturer net weight: 39.8 kg
Maximum load: 150 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.

Weight basis: Manufacturer bicycle/net weight. Battery inclusion is not separately stated; this is not packaged shipping weight.

Range context: Manufacturer pedal-assist range estimate; not an ortlux road test. Rider mass, assistance level, terrain, temperature and tyre pressure affect the distance.

Manufacturer source ↗ · Specification checked: 22 Sep 2026

06 /

Why this brand is here.

DUOTTS spans conventional-wheel electric bicycles, large-battery configurations and fat-tyre models. In this selection, C29Lite and E29 offer different assistance systems; C29-K adds a second battery; F20, F26 and N26 use wider tyres and larger formats. Those differences matter more than a single headline power number.

DUOTTS gives riders a choice between conventional wheel sizes, large batteries and fat-tyre formats. Compare the EU configuration before choosing. We would not choose its heavier fat-tyre models for someone who carries a bike up stairs every day.

Explore the brand

08 /

Model questions

What distinguishes this configuration?

The S26 pairs 26 × 4.0-inch pneumatic tyres with an aluminium frame. Its 48 V 20 Ah battery provides 960 Wh of nominal energy. The supplier lists a dual-motor configuration, Shimano seven-speed gearing and hydraulic disc brakes at both wheels.

What should I know about the battery and range?

The estimated pedal-assist range is 100–120 km. That estimate depends on rider load, terrain and assistance level. Charging is specified at 6–8 hours with the designated charger.

What should I check before choosing?

Check the approximately 39.8 kg manufacturer net weight against any lifting you need to do. Confirm the supplied edition and country-specific road requirements; do not treat a CE mark as public-road approval.

09 /

Compare within the brand.

Model specifications from the same product fields

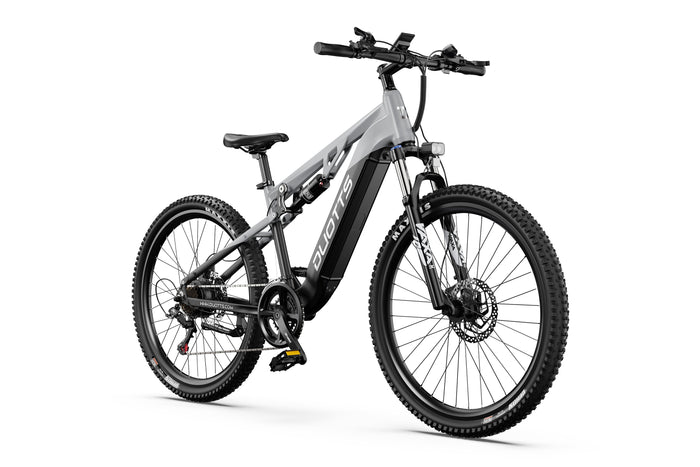

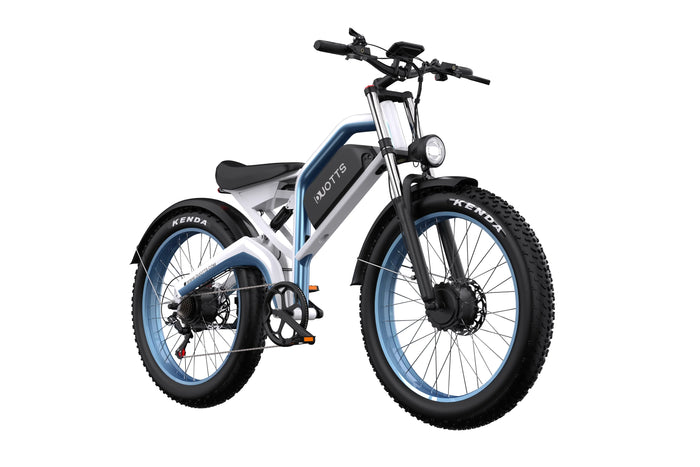

Configuration	DUOTTS S26 Electric Bike	DUOTTS F26 Electric Bike	DUOTTS N26 Electric Bike	DUOTTS E29 Electric Bike
Maximum load	150 kg	150 kg	150 kg	150 kg
Manufacturer net weight	39.8 kg	40.0 kg	39.16 kg	26.6 kg
Manufacturer range	100 km	100 km	100 km	80 km
Battery capacity	960 Wh	960 Wh	960 Wh	648 Wh
Design top speed	25 km/h	25 km/h	25 km/h	25 km/h
Ingress protection	IPX4	IPX4	IPX4	IPX4
Rider height (min)	170 cm	170 cm	170 cm	170 cm
Rider height (max)	200 cm	200 cm	200 cm	200 cm
