Name: ONESPORT W77 Electric Bike
Brand: ONESPORT

02 /

Know what fits your ride.

A low entrance and broad tyres

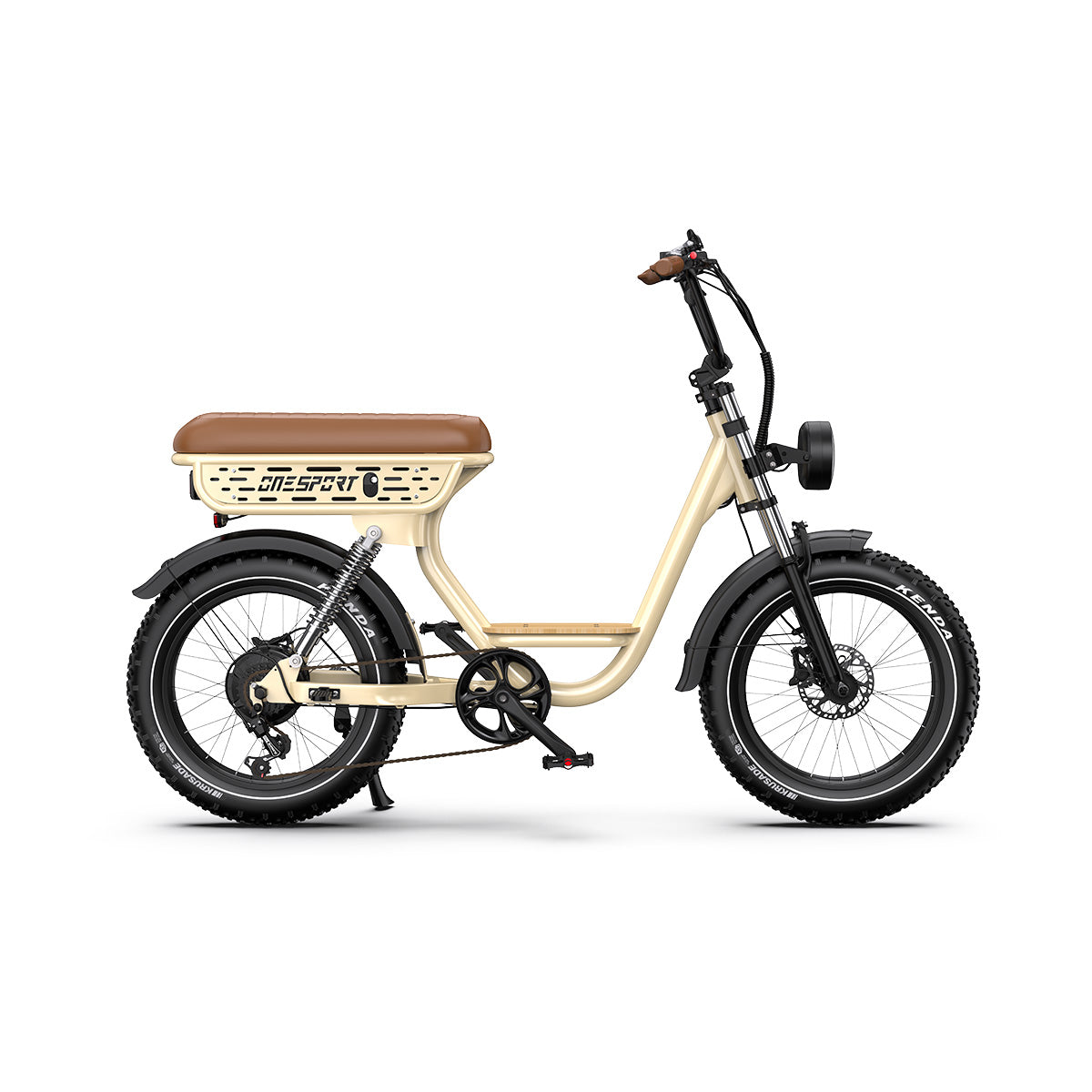

The W77 combines a steel frame with 20 × 4.0-inch tyres and a long saddle. Its 48 V 18 Ah battery provides 864 Wh of nominal energy. Hydraulic disc brakes, seven-speed gearing and a speed sensor are listed in the supplier specification.

48 V 18 Ah battery
20 × 4.0-inch tyres
Hydraulic disc brakes

Battery, range and storage

The supplier estimates 80–90 km with pedal assistance and specifies 8–9 hours for charging. Its approximate net weight is 43.18 kg, making lifting and storage access important parts of the decision.

Before you choose

Check the supplied motor edition and load limit with ortlux before purchase. The seat shape does not establish passenger capacity. Plan parking and storage around the actual dimensions rather than the wheel diameter alone.

Additional model specifications

Specification	Manufacturer information
Charger output	54.6V 2A smart charger
Front light	400LM K-Mark light
Rear lighting	K-Mark light
Mudguards	Full-length plastic fenders for both front and rear wheels
Front suspension	Double crown suspension fork featuring aluminum crown and steel stanchions,135 mm travel, non-adjustable and non-lockable

Maximum load: 90 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.
Manufacturer net weight: 43.18 kgManufacturer net weight. Battery inclusion is not separately stated; packaged weight is excluded.
Manufacturer range: 80–90 kmManufacturer’s stated range. Actual distance varies with rider weight, terrain, temperature and assistance level.

Rated motor power: 250 W
Battery capacity: 864 Wh
Design top speed: 25 km/h
Ingress protection: IPX4

03 /

Support beyond delivery.

Returns and statutory rights

You have 14 calendar days after receiving the goods to notify us that you withdraw.

Estimated maximum withdrawal return costs: electric bicycles 150 EUR; electric scooters 80 EUR. ortlux pays for accessory returns.

Withdrawal refunds are due within 14 calendar days after we receive your notice, using the original payment method.

Your statutory guarantee lasts at least two calendar years.

ortlux pays all return and collection costs for quality and transport problems.

Returns & Right of Withdrawal Withdraw from contract here

Warranty and legal rights

Brand commercial warranties and the ortlux extended warranty do not replace or reduce your statutory rights.

We respond to warranty enquiries within 1–2 business days.

Repairs take 7–14 business days from receipt of the vehicle for repair.

ortlux pays the shipping costs for warranty repairs.

Warranty & Your Legal Rights

Care and support

Keep the frame and battery labels and note the exact edition. Before requesting parts, record tyre size, brake type and connector details. For an electrical issue, provide the display error and a clear description of when the fault occurs.

One place for aftercare

We reply within 1 business day. Monday to Friday, 09:30–18:30 CET/CEST (Europe/Berlin).

For enquiries received during service hours, we count from receipt; for enquiries received outside service hours, counting starts on the next business day.

Frank replies to escalated, unresolved customer-service cases within 2 business days.

Our Service Promise

Contact customer service

05 /

The details, grouped.

Motor

Motor model: 250 W rated / 500 W peak rear hub
Rated motor power: 250 W
Peak motor power: 500 W
Torque: 65 Nm
Assistance sensor: Speed sensor
Design top speed: 25 km/h

Battery

Battery configuration: 48 V / 18 Ah
Battery capacity: 864 Wh
Charging time: 8–9 hours
Manufacturer range: 80–90 km

Frame

Frame material: Steel
Gearing: 7-speed
Suspension: Front and rear suspension

Brakes

Brake type: Hydraulic disc brakes

Tyres

Tyre size: 20 × 4.0 in

Dimensions & weight

Manufacturer net weight: 43.18 kg
Maximum load: 90 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.

Weight basis: Manufacturer net weight. Battery inclusion is not separately stated; packaged weight is excluded.

Range context: Manufacturer pedal-assist range estimate; not an ortlux road test. Rider mass, assistance level, terrain, temperature and tyre pressure affect the distance.

Configuration notes: Current W77 product page: 90 kg rider/cargo limit. Earlier source material differs. The battery is labelled 48 V / 18 Ah but also 648 Wh; 864 Wh is calculated from V × Ah. Confirm the supplied version before ordering. The supplier specification lists a 500 W motor, while the earlier web specification lists 250 W. The motor rating of the supplied edition requires confirmation; neither figure establishes public-road approval.

Manufacturer source ↗ · Specification checked: 22 Sep 2026

06 /

Why this brand is here.

ONESPORT’s range includes step-through city bicycles, folding models and fat-tyre configurations. OT05 and OT05 Pro focus on torque-sensing city riding; OT12 uses a simpler cadence-based system; OT16 models fold for storage, while OT08 variants use wider tyres. OT02 takes a smaller-wheel, single-speed approach.

ONESPORT covers step-through city bikes, folding formats and fat-tyre models. Start with storage space, rider fit and battery configuration. A folding hinge alone does not make a bike easy to carry; check the complete-bike weight before choosing it for stairs.

Explore the brand

08 /

Model questions

What distinguishes this configuration?

The W77 combines a steel frame with 20 × 4.0-inch tyres and a long saddle. Its 48 V 18 Ah battery provides 864 Wh of nominal energy. Hydraulic disc brakes, seven-speed gearing and a speed sensor are listed in the supplier specification.

What should I know about the battery and range?

The supplier estimates 80–90 km with pedal assistance and specifies 8–9 hours for charging. Its approximate net weight is 43.18 kg, making lifting and storage access important parts of the decision.

What should I check before choosing?

Check the supplied motor edition and load limit with ortlux before purchase. The seat shape does not establish passenger capacity. Plan parking and storage around the actual dimensions rather than the wheel diameter alone.

09 /

Compare within the brand.

Model specifications from the same product fields
Configuration	ONESPORT W77 Electric Bike	ONESPORT OT08 Pro Electric Bike	ONESPORT W66 Electric Bike
Maximum load	90 kg	150 kg	180 kg
Manufacturer net weight	43.18 kg	39.2 kg	39.0 kg
Manufacturer range	80 km	170 km	80 km
Rated motor power	250 W	250 W	250 W
Battery capacity	864 Wh	1728 Wh	648 Wh
Design top speed	25 km/h	25 km/h	25 km/h
Ingress protection	IPX4	IPX4	IPX4
