Name: ONESPORT W66 Electric Bike
Brand: ONESPORT

02 /

Know what fits your ride.

A different shape from a city bicycle

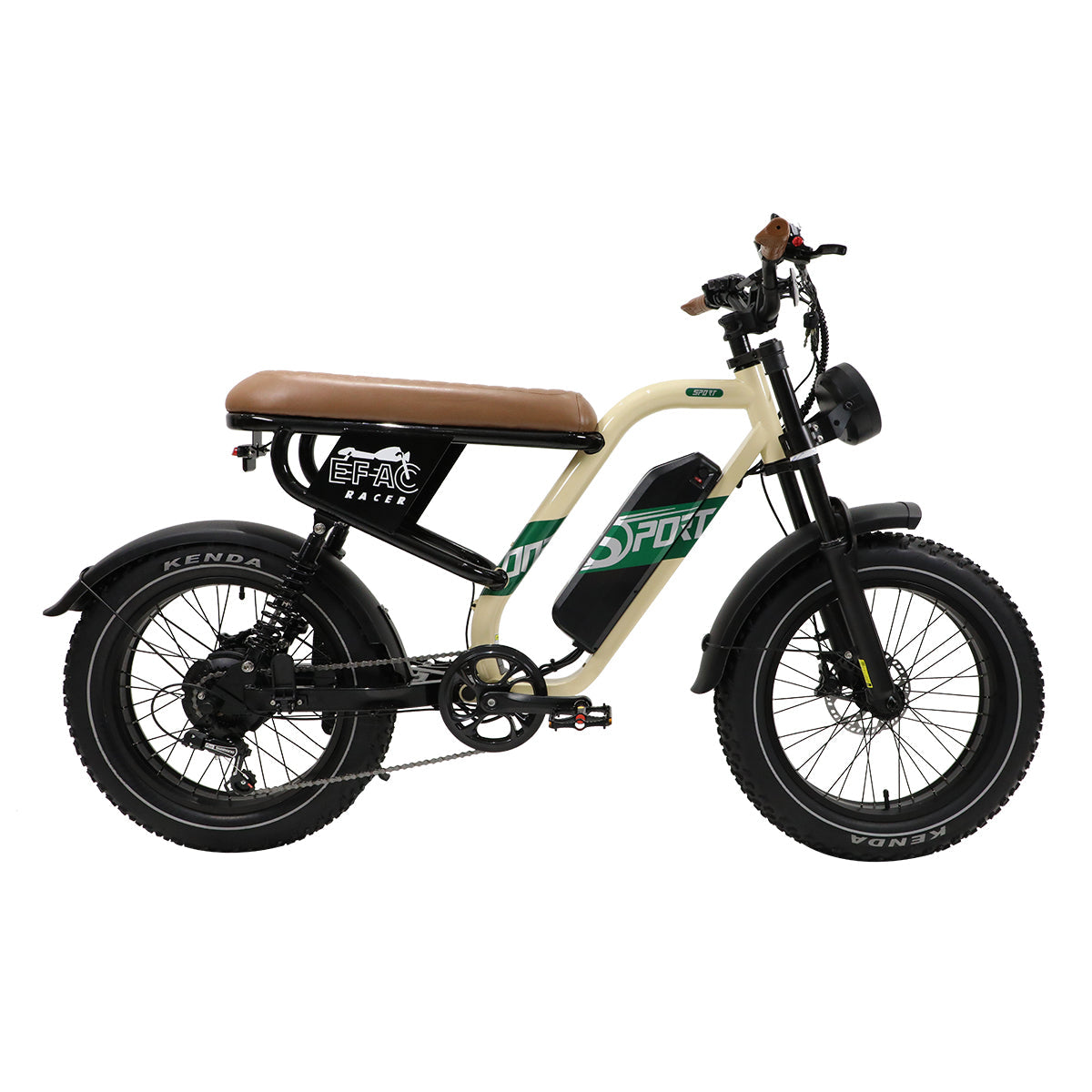

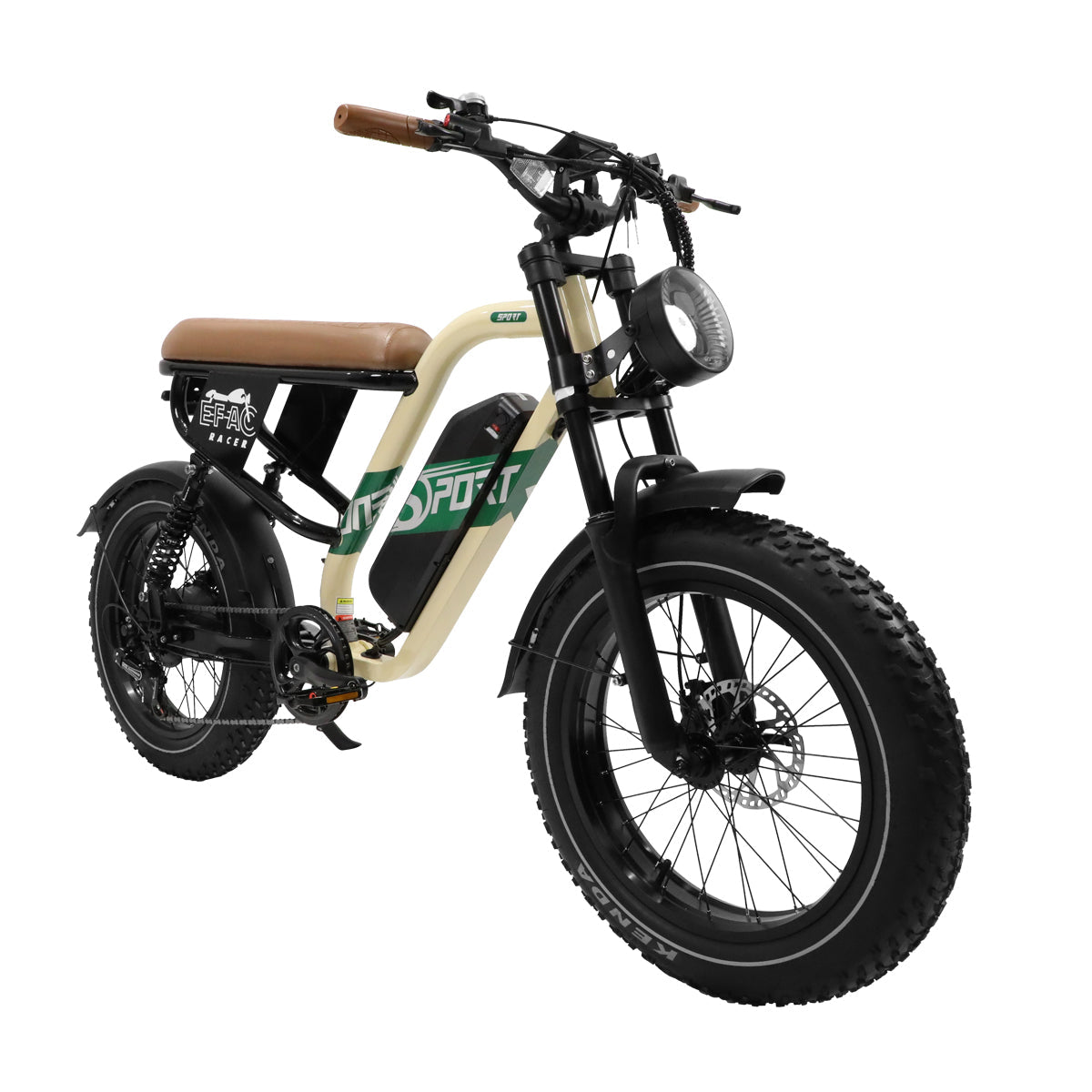

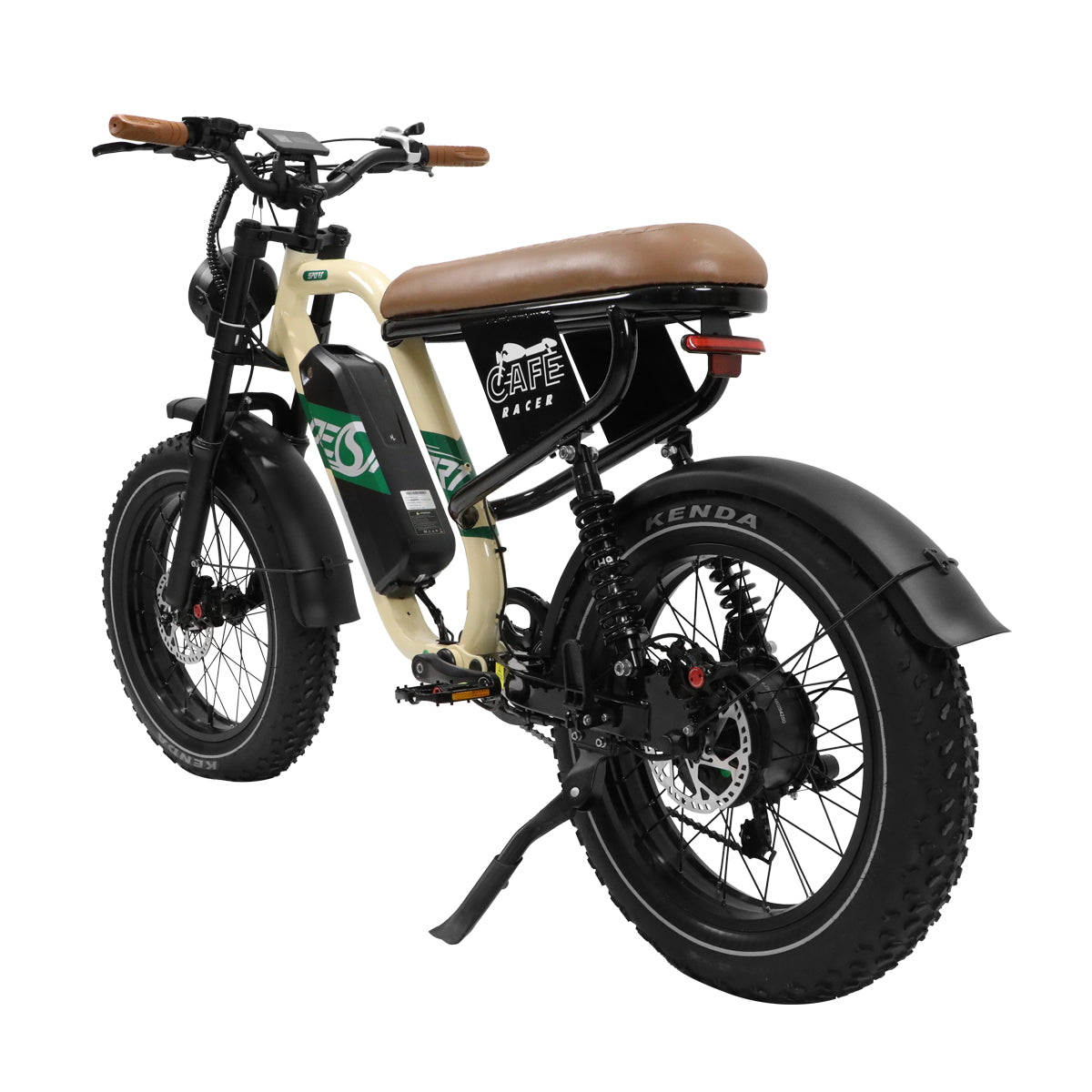

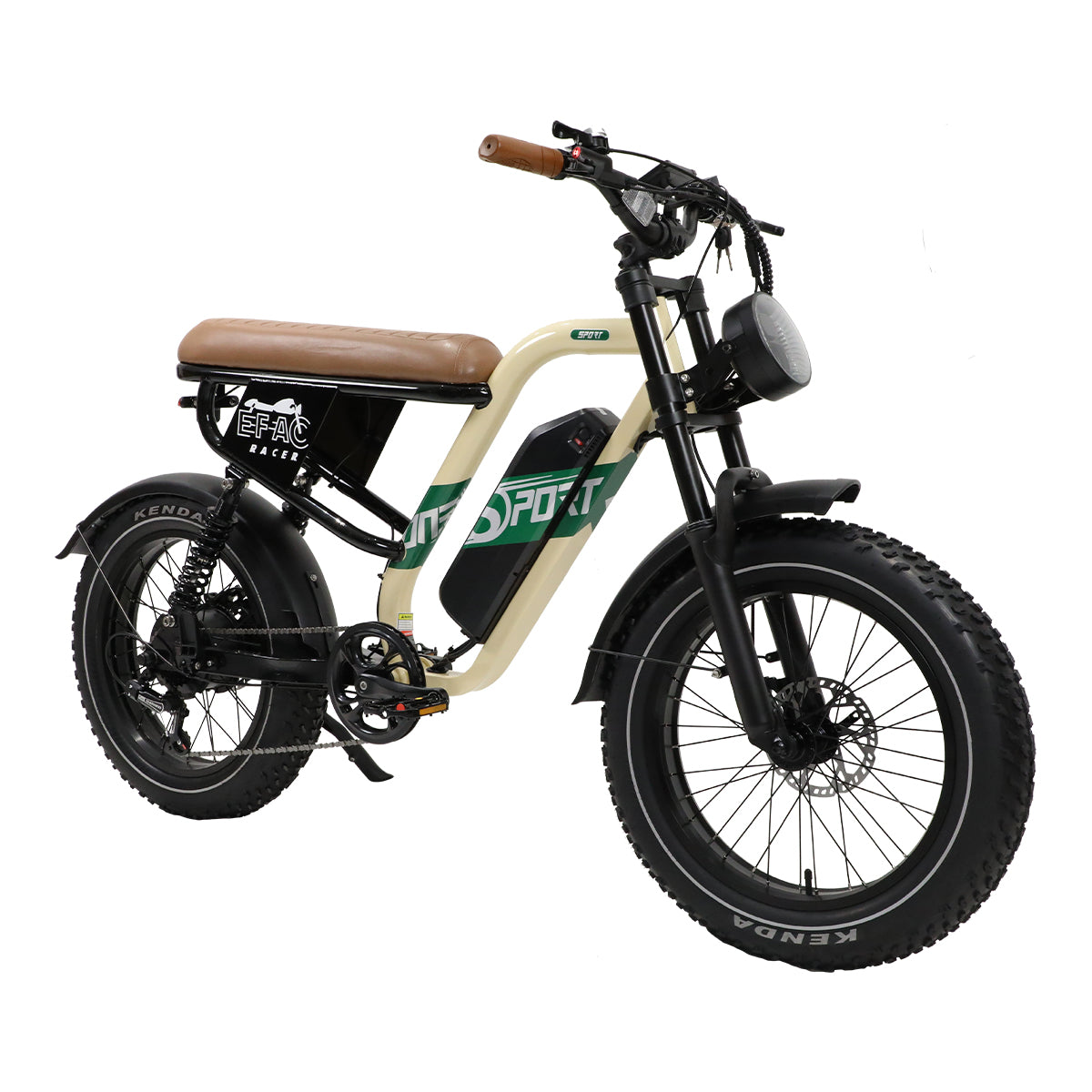

The W66 combines a steel frame, 20 × 4.0-inch tyres and a long saddle. Its 48 V 13.5 Ah battery stores 648 Wh of nominal energy. The supplier lists hydraulic disc brakes and a suspension fork.

20 × 4.0-inch tyres
48 V 13.5 Ah battery
Hydraulic disc brakes

Battery, range and storage

The supplier estimates 80–100 km in pedal-assist mode and specifies 7–8 hours for charging. These figures describe the documented configuration; actual range varies with temperature, route and rider load. The frame is not folding.

Before you choose

Check your storage space and lifting needs against the approximately 39 kg manufacturer net weight. A long saddle does not establish passenger permission: check the vehicle instructions and the applicable load definition.

Additional model specifications

Specification	Manufacturer information
Charger output	54.6V 2.0A
Display	Multifunctional LCD Screen
Front suspension	Shock Absorbing Front Fork

Maximum load: 180 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.
Manufacturer net weight: 39.0 kgManufacturer net weight. Battery inclusion is not separately stated; packaged weight is excluded.
Manufacturer range: 80–100 kmManufacturer’s stated range. Actual distance varies with rider weight, terrain, temperature and assistance level.

Rated motor power: 250 W
Battery capacity: 648 Wh
Design top speed: 25 km/h
Ingress protection: IPX4

03 /

Support beyond delivery.

Returns and statutory rights

You have 14 calendar days after receiving the goods to notify us that you withdraw.

Estimated maximum withdrawal return costs: electric bicycles 150 EUR; electric scooters 80 EUR. ortlux pays for accessory returns.

Withdrawal refunds are due within 14 calendar days after we receive your notice, using the original payment method.

Your statutory guarantee lasts at least two calendar years.

ortlux pays all return and collection costs for quality and transport problems.

Returns & Right of Withdrawal Withdraw from contract here

Warranty and legal rights

Brand commercial warranties and the ortlux extended warranty do not replace or reduce your statutory rights.

We respond to warranty enquiries within 1–2 business days.

Repairs take 7–14 business days from receipt of the vehicle for repair.

ortlux pays the shipping costs for warranty repairs.

Warranty & Your Legal Rights

Care and support

Keep the frame and battery labels and note the exact edition. Before requesting parts, record tyre size, brake type and connector details. For an electrical issue, provide the display error and a clear description of when the fault occurs.

One place for aftercare

We reply within 1 business day. Monday to Friday, 09:30–18:30 CET/CEST (Europe/Berlin).

For enquiries received during service hours, we count from receipt; for enquiries received outside service hours, counting starts on the next business day.

Frank replies to escalated, unresolved customer-service cases within 2 business days.

Our Service Promise

Contact customer service

05 /

The details, grouped.

Motor

Motor model: 250 W rated / 500 W peak rear hub
Rated motor power: 250 W
Peak motor power: 500 W
Torque: 65 Nm
Assistance sensor: Speed sensor
Design top speed: 25 km/h

Battery

Battery configuration: 48 V / 13.5 Ah
Battery capacity: 648 Wh
Charging time: 7–8 hours
Manufacturer range: 80–100 km

Frame

Frame material: Steel
Gearing: 7-speed
Suspension: Front suspension fork and rear shock absorber (30 mm)

Brakes

Brake type: Hydraulic disc brakes, 180 mm rotors

Tyres

Tyre size: 20 × 4.0 in

Dimensions & weight

Dimensions: Length: 1460MM; Front Height: 850MM
Manufacturer net weight: 39.0 kg
Maximum load: 180 kgCheck the manufacturer’s definition of total permitted load before carrying a rider and luggage. Passenger use is not implied.

Weight basis: Manufacturer net weight. Battery inclusion is not separately stated; packaged weight is excluded.

Range context: Supplier specification estimates 80–100 km with pedal assistance. This is not an ortlux range test; temperature, route, assistance level and rider load affect the distance.

Configuration notes: The supplier specification lists a 500 W motor, while the earlier web specification lists 250 W. The motor rating of the supplied edition requires confirmation; neither figure establishes public-road approval.

Manufacturer source ↗ · Specification checked: 22 Sep 2026

06 /

Why this brand is here.

ONESPORT’s range includes step-through city bicycles, folding models and fat-tyre configurations. OT05 and OT05 Pro focus on torque-sensing city riding; OT12 uses a simpler cadence-based system; OT16 models fold for storage, while OT08 variants use wider tyres. OT02 takes a smaller-wheel, single-speed approach.

ONESPORT covers step-through city bikes, folding formats and fat-tyre models. Start with storage space, rider fit and battery configuration. A folding hinge alone does not make a bike easy to carry; check the complete-bike weight before choosing it for stairs.

Explore the brand

08 /

Model questions

What distinguishes this configuration?

The W66 combines a steel frame, 20 × 4.0-inch tyres and a long saddle. Its 48 V 13.5 Ah battery stores 648 Wh of nominal energy. The supplier lists hydraulic disc brakes and a suspension fork.

What should I know about the battery and range?

The supplier estimates 80–100 km in pedal-assist mode and specifies 7–8 hours for charging. These figures describe the documented configuration; actual range varies with temperature, route and rider load. The frame is not folding.

What should I check before choosing?

Check your storage space and lifting needs against the approximately 39 kg manufacturer net weight. A long saddle does not establish passenger permission: check the vehicle instructions and the applicable load definition.

09 /

Compare within the brand.

Model specifications from the same product fields
Configuration	ONESPORT W66 Electric Bike	ONESPORT OT08 Pro Electric Bike	ONESPORT W77 Electric Bike
Maximum load	180 kg	150 kg	90 kg
Manufacturer net weight	39.0 kg	39.2 kg	43.18 kg
Manufacturer range	80 km	170 km	80 km
Rated motor power	250 W	250 W	250 W
Battery capacity	648 Wh	1728 Wh	864 Wh
Design top speed	25 km/h	25 km/h	25 km/h
Ingress protection	IPX4	IPX4	IPX4
